7 Inch Round LED Headlamp by Ignite

Ignite 7" Round LED Headlamp 9 - 36 Volt 65 Watt

Ignite have just released a new 7" headlamp for replacement in a variety of automotive applications. Features both High and Low beam with a brilliant spread of light.

An excellent replacement for the common PAR56 H4 and conventional sealed beams currently in the market. As with all Ignite LED lamps, these headlights have a low current draw.

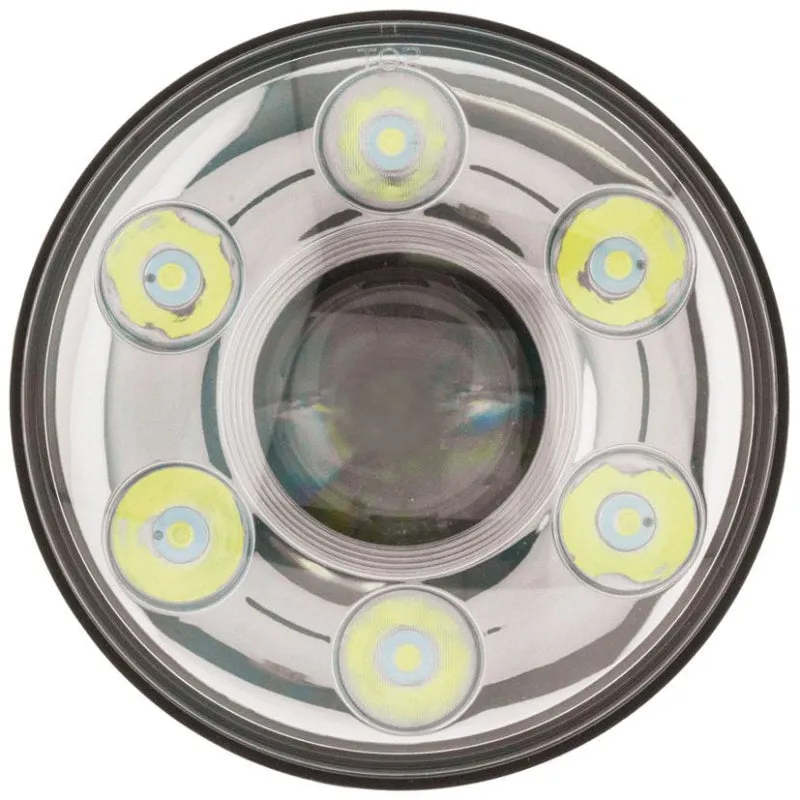

Low beam is emitted from the single Philips LED in the centre with Ignite patented TIR Lens technology providing the High beam and park lamp functions via the 6 Cree LED's around the outside. H4 and H13 Globe holder connector leads are supplied with each light. IP68 rated.

Features

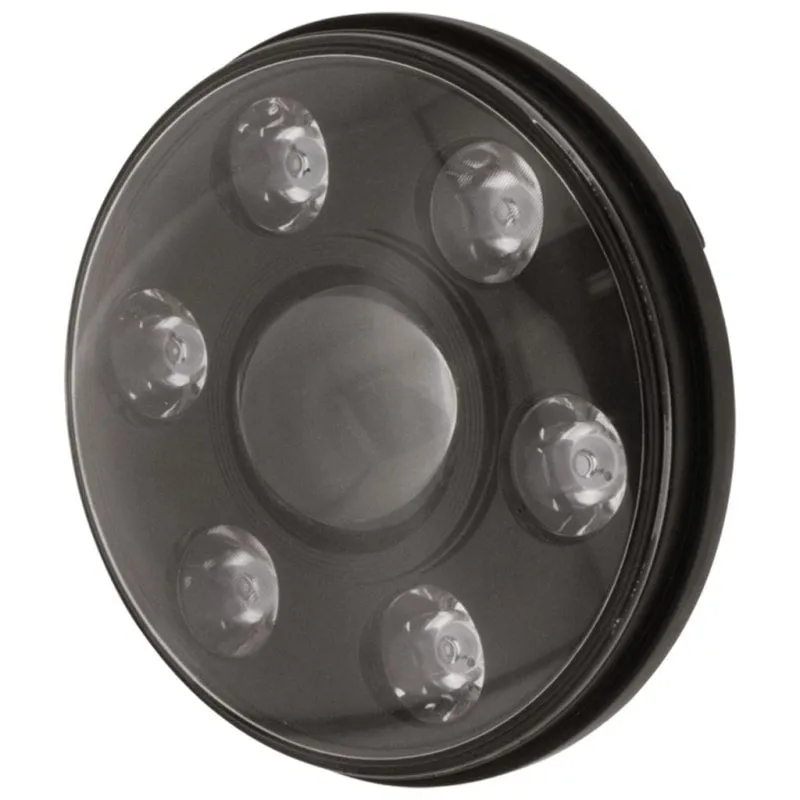

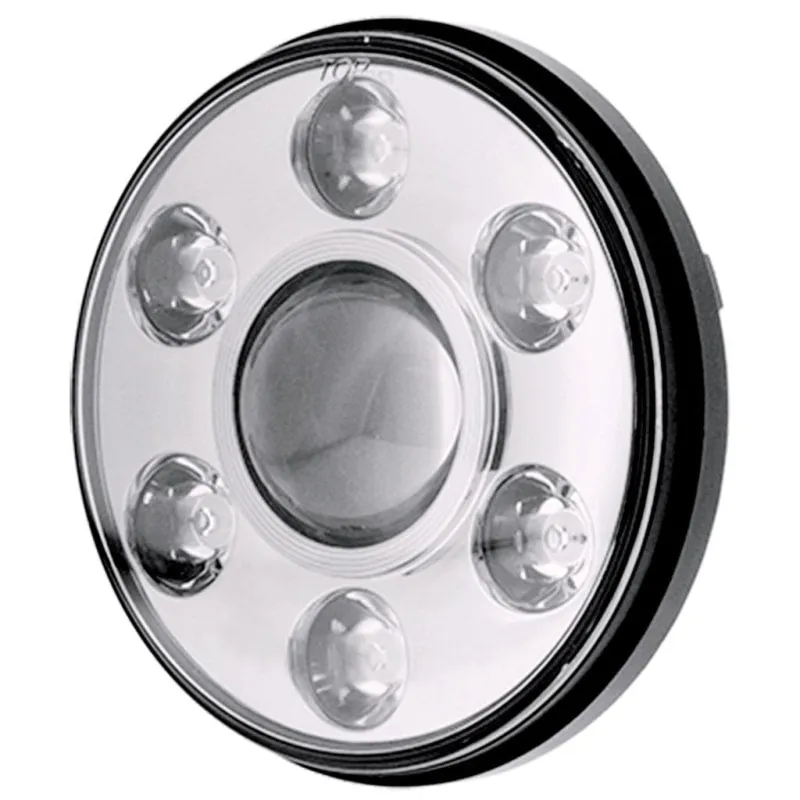

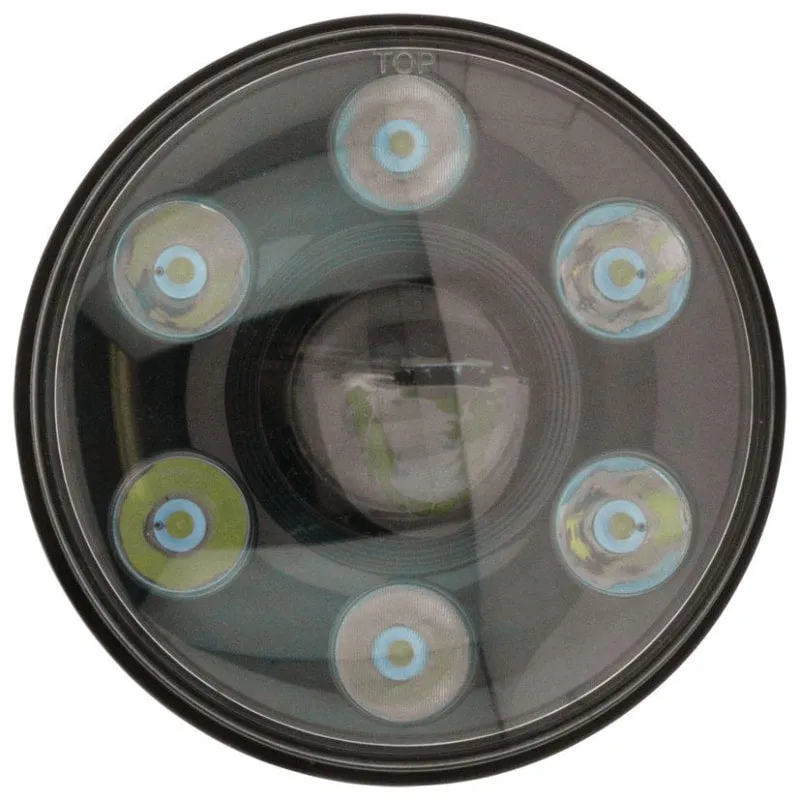

• High/Low Beam and Park Light - Black or Chrome Fascia
• 7" or 178mm Round
• 6 x 10 Watt High-Intensity CREE LEDs for Park Light and High Beam
• 1 x 5 Watt High-Intensity LUMI LED for Low Beam
• 1.7amp at 12 Volt, 0.8amp at 24 Volt for Low Beam

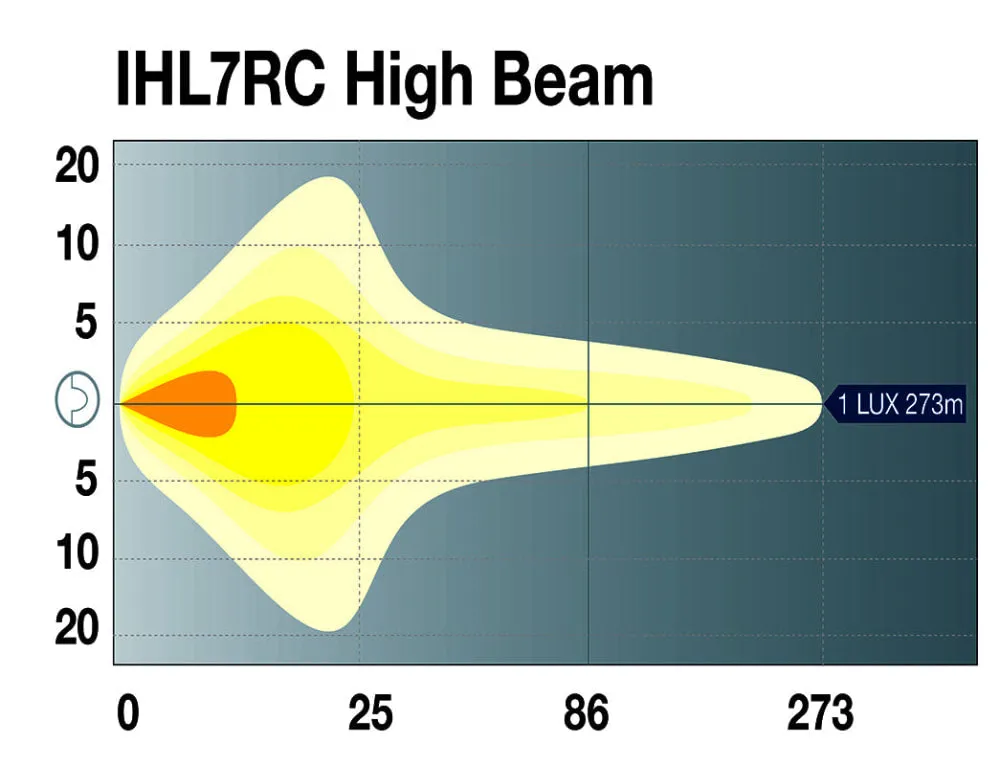

• High Beam 3,900 Raw or 3,315 Effective Lumens and 6,500K

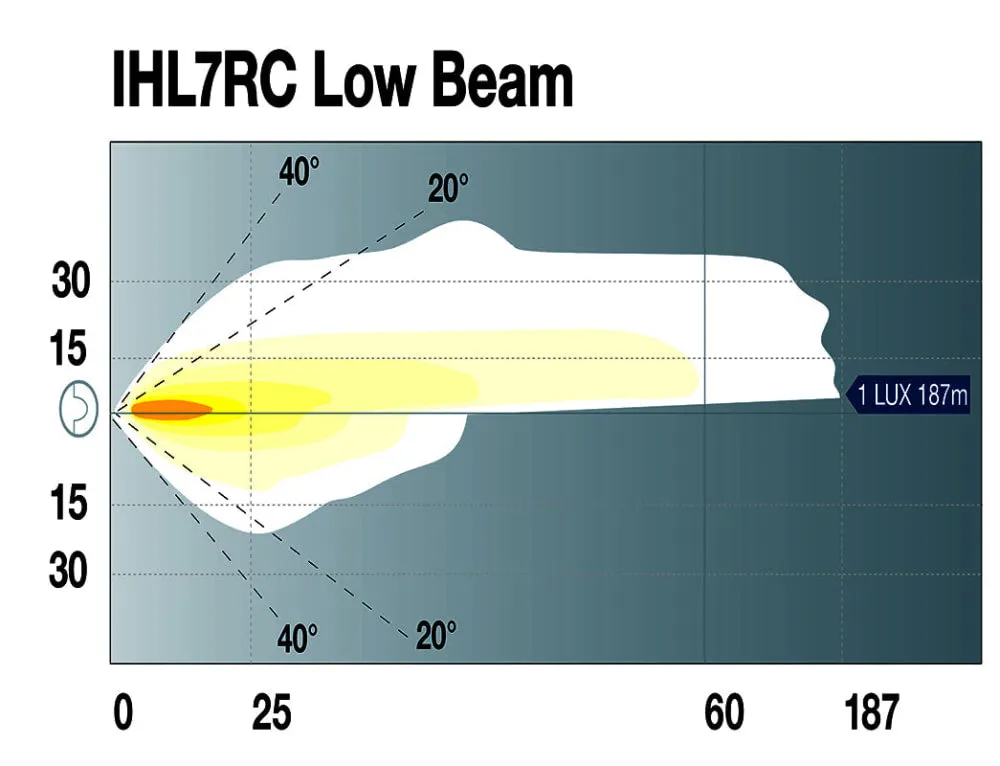

• Low Beam 1,800 Raw or 1,530 Effective Lumens and 6,500K
• Lexan Polycarbonate Lens and Reflectors
• Patented TIR Lens Optics System for High Beam and Park Lights

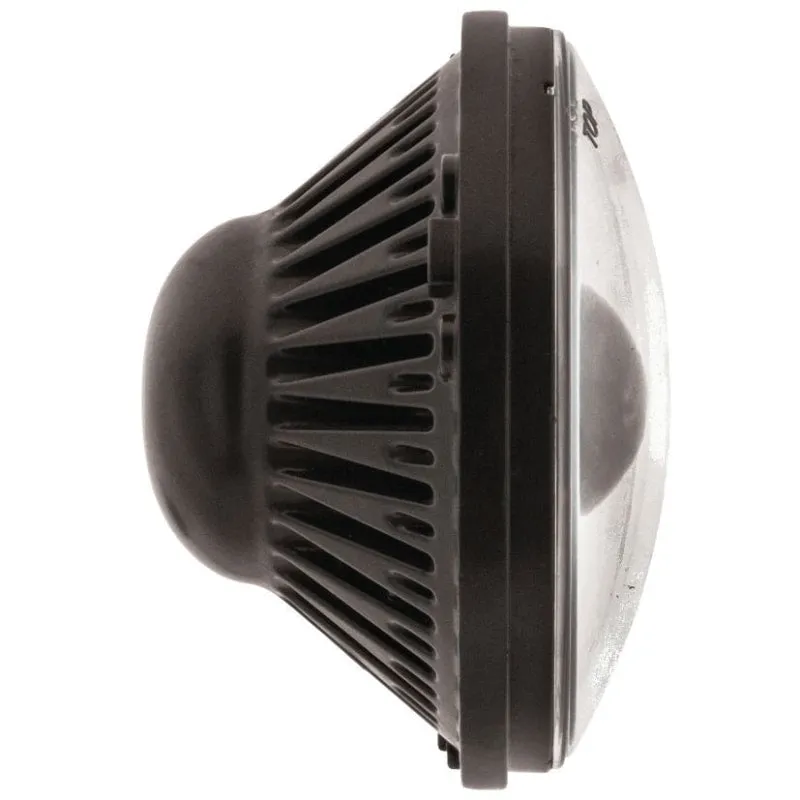

• Black anodised Polyester Powder Coated Die-Cast Aluminium (ADC12) Housing
• 6063 Extruded Aluminium Heat Sink
• 150mm Lead with H4 Connector and High Beam Adaptor Plug
• 50,000 Hours LED Lifespan
• Integrated Electronic Thermal Management (ETM)
• Reverse Polarity and Power Surge Protection
• UV Stabilized
• EMC Compliant
• Shock Resistant, Vibration Tested to 6G's
• Environment temperature -40~ 60 °C
• ECE R112 / R7, DOT, CE Certified
• IP68 and IP69K Rating

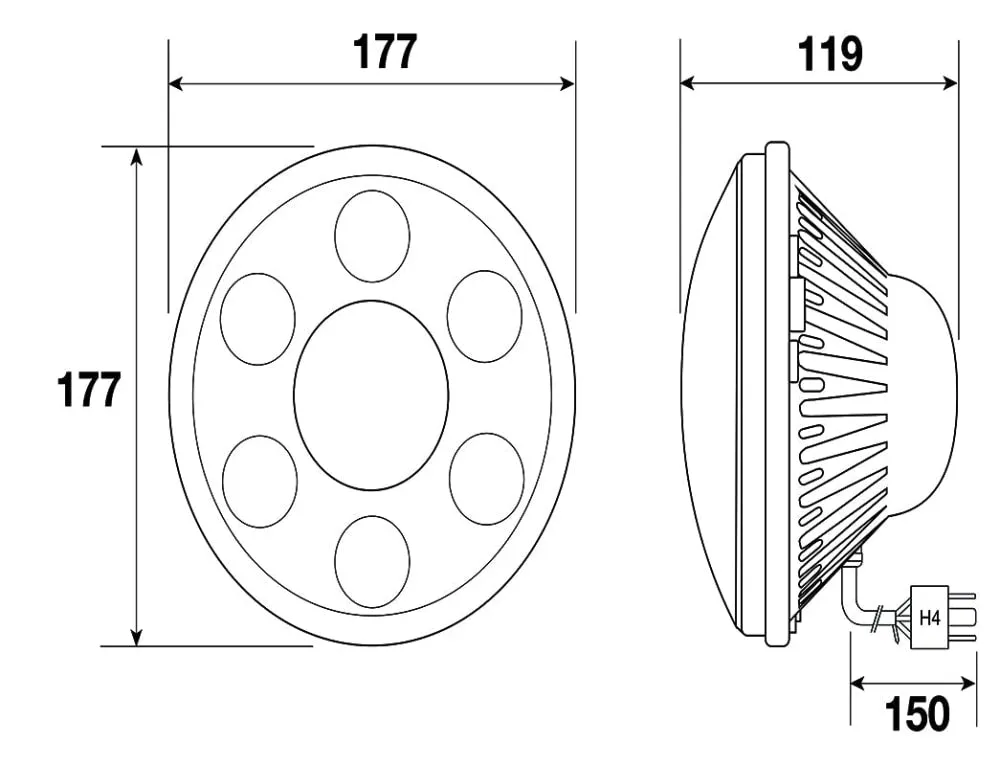

Specifications

• Beam Type: High/Low Beam
• Depth (mm): 115.2
• Height (mm): 176
• Shape: Round
• Type: LED
• Voltage: Multivolt
• Width (mm): 176
• Current Draw: 4.1amp at 12 Volt, 1.8amp at 24 Volt High Beam

Warranty

• 5 Year Manufacturer Warranty
