Features:

• Built-in 5G measurement software supports efficient development and production
• All-in-one 5G NR/V5G (sub-6 GHz/mmWave) coverage
• High EVM performance due to wide dynamic range (EVM: <1%)
• One-button dynamic-range optimization at EVM measurement
• Multicarrier batch (all-at-once) analysis
• Amplitude/phase/timing difference measurement for each carrier
• Maximum analysis bandwidth: 1 GHz
• Excellent amplitude and phase flatness performance
• Wide dynamic range measurement: >140 dB
• Long-term capture using large memory
• With PCIe/USB3.0 connector equipped
• Transfers captured data to external PC at faster speed than 1000BASE-T

Specifications:

• 44 GHz

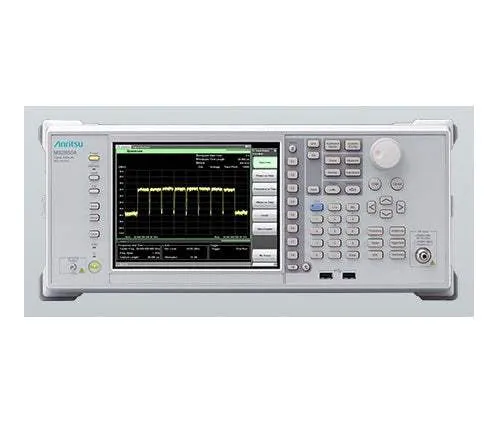

The Signal Analyzer MS2850A is a spectrum analyzer/signal analyzer with a maximum analysis bandwidth of 1 GHz and a frequency range of 9 kHz to either 32 GHz or 44.5 GHz. It has an analysis bandwidth supporting wideband communications measurements, such as 5G mobile communications and broadcast satellite equipment, providing all-in-one coverage from the sub-6 GHz to millimeter-wave 28 GHz/39 GHz bands. With excellent cost- performance, this benchtop signal analyzer helps cut development and production costs for communications equipment while improving efficiency.
