Product Details
＋

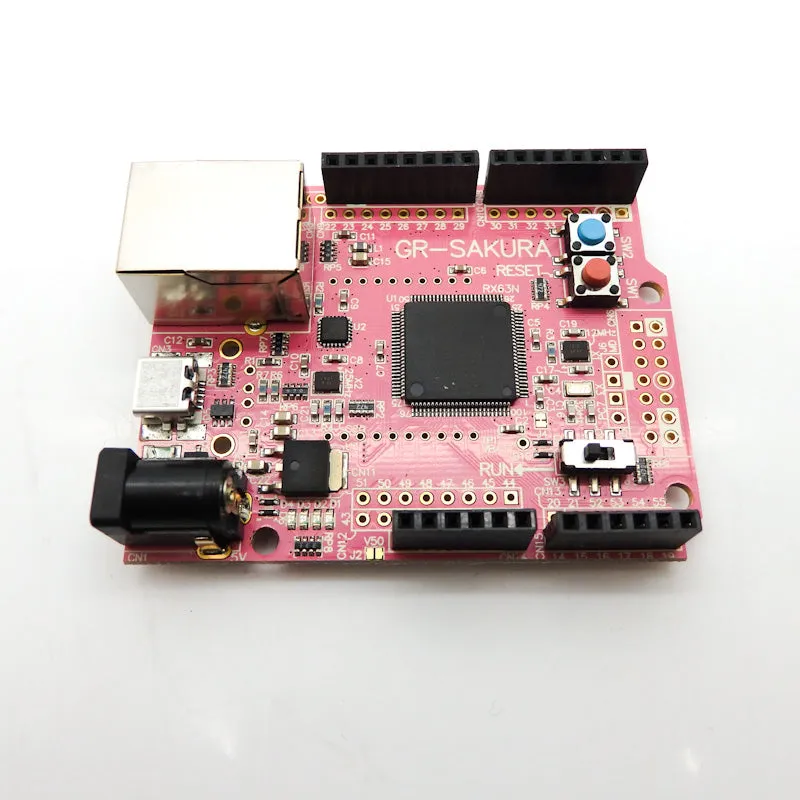

The Wakamatsu Tsusho Co Ltd GR-SAKURA II development board comes with an Arduino Uno format for the Renesas RX63N family of 32-bit microcontrollers. The development software including a compiler is available online 'in the cloud' via the Renesas website. Software is also available for developing Android smartphone applications. The GR-SAKURAII part is part-populated with interface connectors. The GR-SAKURAII-FULL part is fully populated with a range of connectors.
Features:
- 96MHz RX63N 32-bit microcontroller with 1MB Flash memory, 256KB RAM, 32KB Data Flash
- RX63N features a floating-point maths unit and DSP instructions
- 55 x GPIO pins
- 6 x analogue input pins
- XBee wireless module header footprints
- Mini-B USB-host connector
- microSD card slot
- Reset pushbutton
- User pushbutton
- 4 x user LEDs
- Powered from USB or barrel connector
- Footprint for 14-pin JTAG program/debug header
- Shield headers (GR-SAKURAII-FULL)
- RJ-45 Ethernet LAN connector (GR-SAKURAII-FULL)
- 5VDC power supply barrel connector (GR-SAKURAII-FULL)
